\GUF DSD-NG

Automatic machine for the production of double and triple spike chain

Automatic machine for the production of double and triple spike chain GUF DSD-NG

Electronic movement of plier OMBI patented pending
Easy production of spike chain double and triple.
Option for hollow chain production

Electronic system OMBI patented pending for the production of right and left links of spike chain.

By an easy command from touch screen the machine automatically change its setup for the production of curb left or right and cable single and double

Simple changing of wire size

The GUF DSD-NG is provided of:
- multi language touch screen panel with machine controls and diagnostic alarms
- chain collector plate (in option)
- electronic guide device for hollow wire (in option)
- chain coiling system (in option)
- laser connection

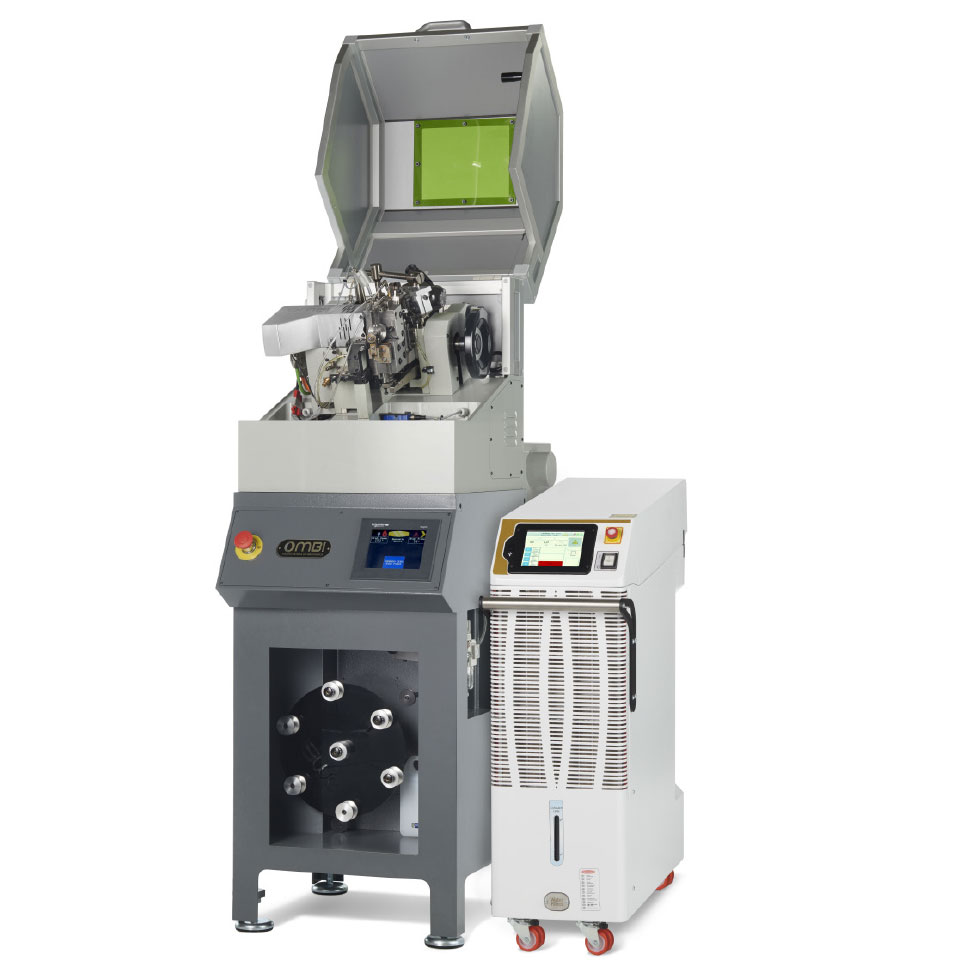

- laser welding unit (in option)
- automatic lubrication system
- CE certification

Technical data GUF DSD-NG

Wire diameter 0,20 - 0,60 mm

Output rpm - links 150 - 200 max

Voltage 220 V/50-60 Hz

Power headed 0,75 kW

Net/Gross weight 220/370 kg

Overall dimensions 55x96x146 cm

Photogallery

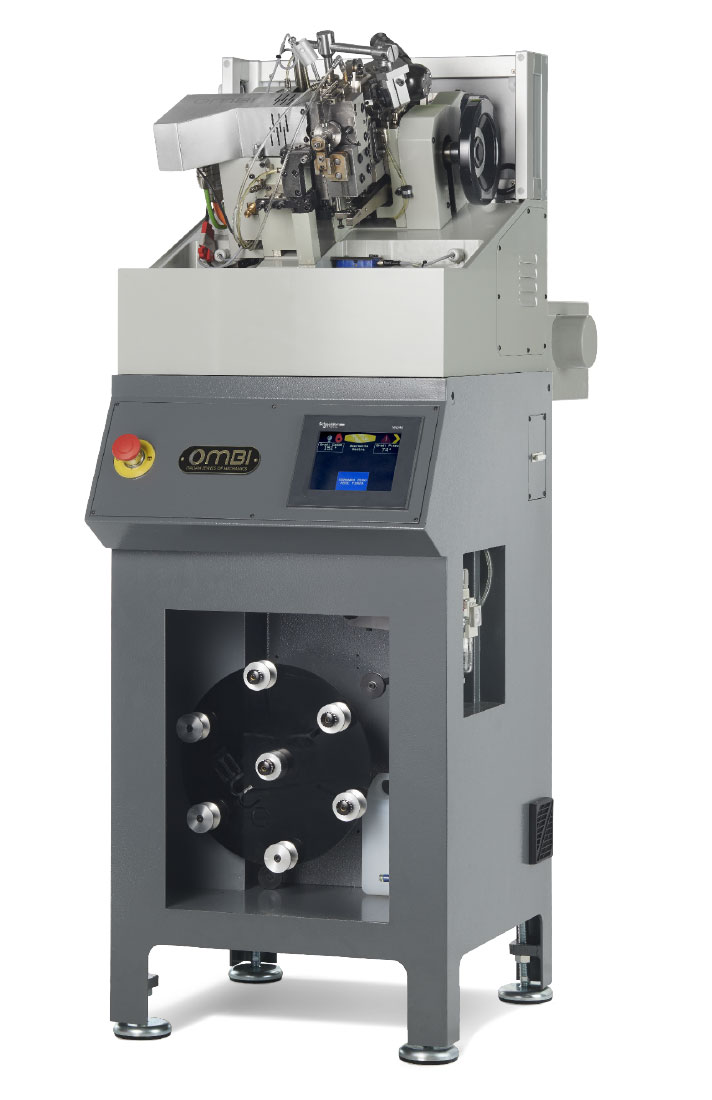

Automatic machine for the production of double and triple spike chain. — Front view GUF DSD-NG

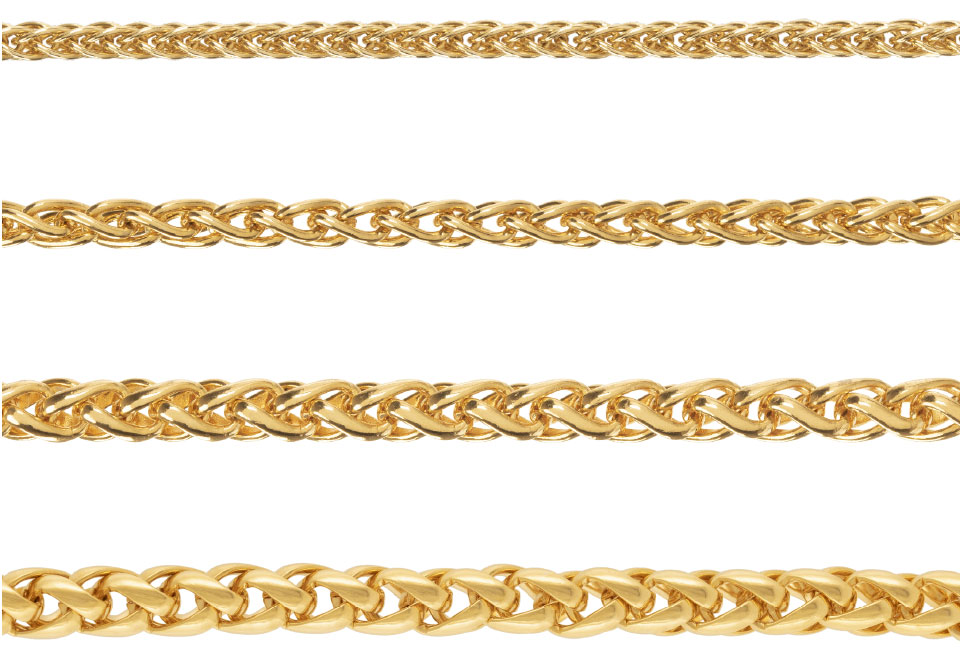

Example of chains production with GUF DSD-NG

Video

Information

request info

dowload PDF

print sheet
