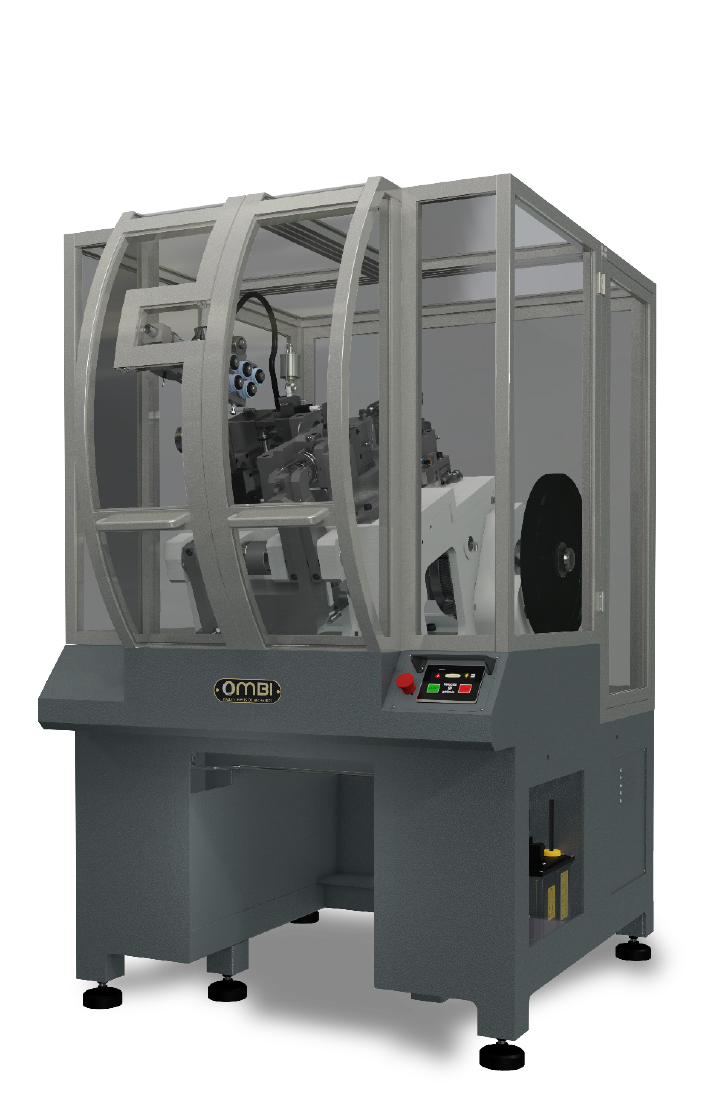

\GG-NG
Automatic high speed machine for the production of cable and curb chain right and left
-
Easy change from curb to cable
-
Giant chain production filo 8 mm
-
Option for hollow chain production

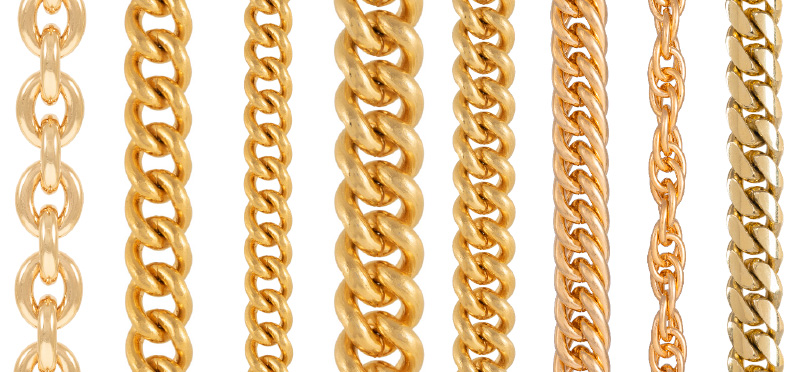

Curb and cable chains can be made in single and double versions.
Easy change from curb to cable.
Simple changing of wire size.
The GG-NG is provided of:
- multi language touch screen panel with machine controls and diagnostic alarms
- chain coiling system (in option)
- electronic guide device for hollow wire (in option)
- automatic lubrication system
- CE certification
Technical data GG-NG
Wire diameter 3,50 - 8,00 mm
Output rpm - links 40 max
Metri 60
Voltage 220 V/50-60 Hz
Power headed 1,2 kW
Net/Gross weight 1000/1200 kg
Overall dimensions 130x115x190 cm
