\GUF 18-NG

Automatic high speed machine for the production of cable and curb chain right and left

Automatic high speed machine for the production of cable and curb chain right and left GUF 18-NG

Electronic movement of plier OMBI patented pending
Electronic system for selection of cable or curb chain
Option for hollow chain production

Electronic system OMBI patented pending driven by touch screen to produce cable chain and curb right and lef
Simple tooling set up
This version of machine doesn’t need chain collector plate for single cable production.

The GUF 18-NG is provided of:
- multi language touch screen panel with machine controls and diagnostic alarms
- electronic guide device for hollow wire (in option)
- chain coiling system (in option)
- laser connection
- laser welding unit (in option)
- automatic lubrication system
- CE certification

Technical data GUF 18-NG

Wire diameter 0,70 - 1,80 mm

Output rpm - links 150 max

Voltage 220 V/50-60 Hz

Power headed 1,0 kW

Net/Gross weight 250/420 kg

Overall dimensions 65x105x156 cm

Photogallery

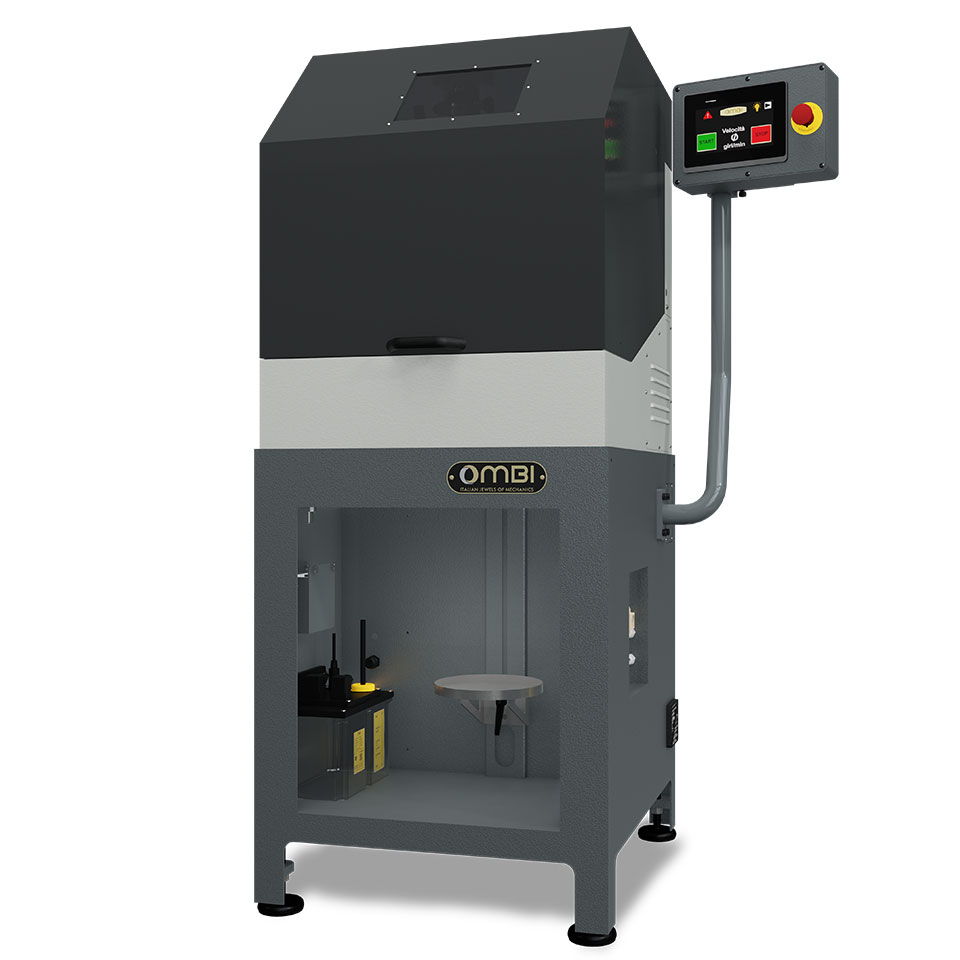

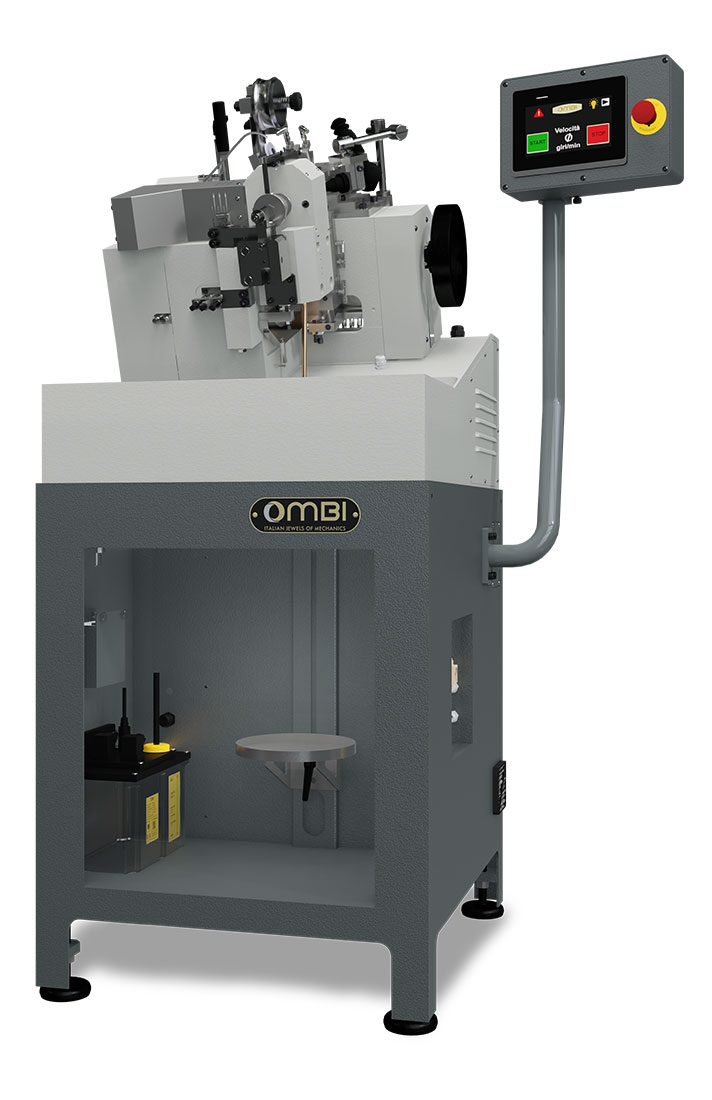

Automatic high speed machine for the production of cable and curb chain right and left — Front view GUF 18-NG

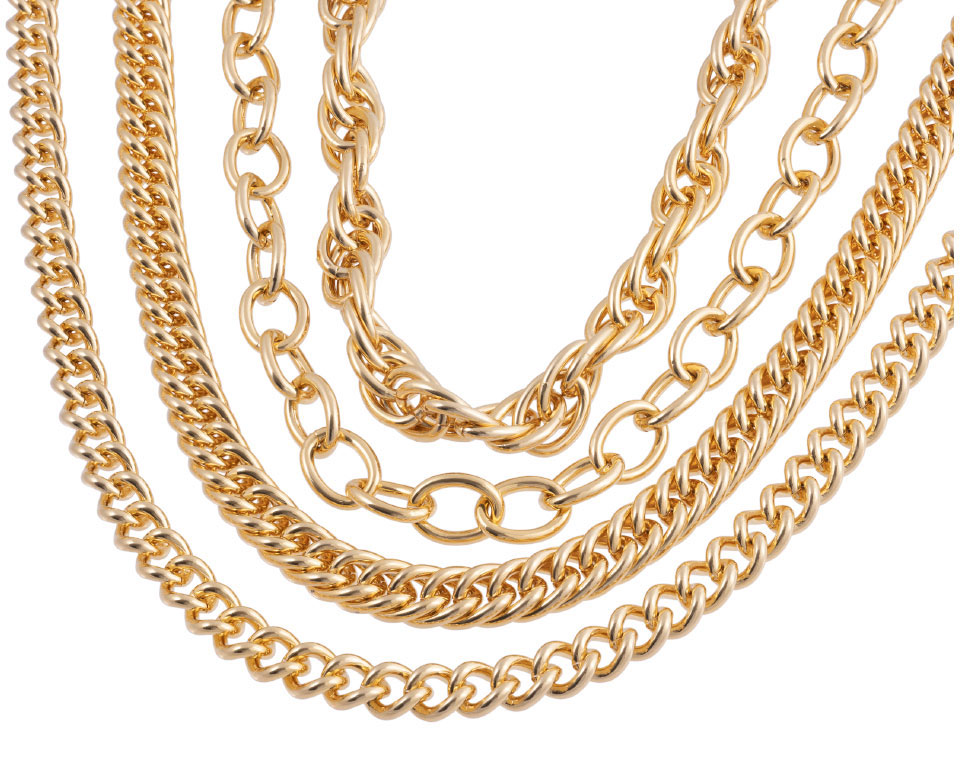

Example of chains production with GUF 18-NG

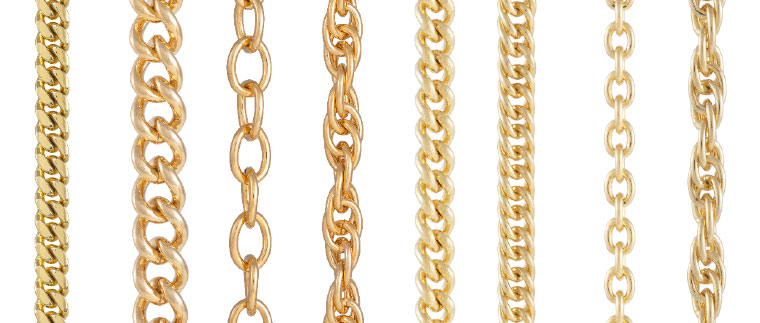

Example of chains production with GUF 18-NG
